Waste PCB Recycling Machines Introduction
PCB ( Printed circuit board ) was recycled & processed by PCB recycling machine which can separate its metal power, fiber powder, and resin powder, the purity of recycled rate is up to 99%. Therefore, get pure copper, fiber and resin powder
Usage of the Recycled Product of the PCB Recycling Machine
Usually more than 96% metal powder is copper, the rests are gold, silver, tin, palladium and other rare elements according to the different metal content of the raw materials, which the market price is very high, e.g. the copper metal price up to 40000 yuan per ton.
Generally the resin powder can be used in wood industry, plywood, five plywood or as other filler materials. Fiber powder mainly used for insulation materials, which the market prospects are very broad, not only integrated utilization of electronic waste, but also benefit both people and country.
Raw materials of Waste PCB Recycling Machine YX-300
* Waste circuit boards: computer board, TV board
* Aluminum-plastic panels,
* Copper clad laminate,
* Printed circuit boards and its scraps,
Source of PCB raw materials
Various types of PCB which comes from waste electrical appliances, scrap TV, refrigerator scrap, discarded computers, air conditioners and other waste materials used for WEEE solutions for crushing and recycling process, recycled metal purity up to 98%.
Features of YUXI-300 circuit board recycling equipment
(high-voltage electrostatic separation type)
● New technique: Mechanical crushing, high-voltage electrostatic separation for sorting metal and non-metallic powder, high purity.
● It can achieve a high rate of separation of metal with good energy saving due to reasonable structure.
● High efficiency, Low consumption: such as for single set of PCB recycling machine, the maximum production capacity can reach up to 1 ton per hour.
● Affordable price, copper recycling is higher about 3 – 5% than similar PCB recovery equipment
● Have a good compatibility for recycling various PCB which contained electronic components. E.g. computer boards, laptop board, TV board, and other circuit control panel has a unique effect.
● Circuit board recycling equipment production line is the traditional wind selection products type of the upgrading of products, power saving, no noise, highly automated procedures, improve efficiency
● Small footprint, installation flexibility of printed circuit board recycling equipment
Structure principle of Waste PCB Recycling Machine
Circuit board recycling equipment (high-voltage electrostatic separation type) is composed of crushing systems, dust removal equipment and high-voltage electrostatic separation system.
PCB Recycling Process YX-300

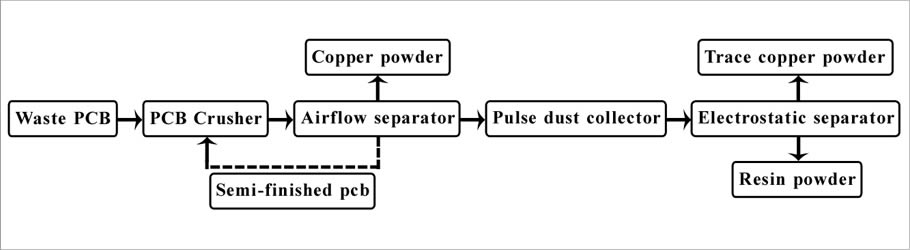

Process flowchart of the PCB recycling machine YX-300
Waste PCB Recycling Machine YX-300 ( high voltage electrostatic separation type ) adopts dry crushing, grinding, so raw materials ( printed circuit board ) into a mixture of metal and resin fiber powder. Then separates the metals (copper) from the non-metal materials (resin) by high voltage electrostatic separator. To avoid dust pollution in the recycling process, waste circuit board recycling equipment uses three-in-one dust removal equipment independently developed by YUXI machinery, and this means there are three-stages of dust removal: cyclone, bag filter and air cleaner dust, to effectively solve the problem of dust pollution, with every index reached the national environmental standards.
