With 1000 KG per one hours capacity, Printed circuit board PCB recycling production line YX-1000, mainly used for large-scale waste PCB recycling plant to recycle copper, resin fiber from waste computer, scrap TV, old cellphone, copper clad laminate (CCL), pcb etching, and other PCB comes from WEEE or electric waste, there are detailed PCB Recycling Process in the last part.



PCB Recycling Production line Unique Features



√ Compact structure, easy installation.
√ Simple operation.
√ Ensuring PCB crusher 24 h continued working due to the its bearing configured with cooled-system.
√ PLC control, ensures the PCB recycling line uniform feeding, coordinating work.
√ Sorting rate of airflow separation machine is as high as 97%-99%.
√ Pulse dust-collector efficiency is almost 99.99%.
√ High-voltage electrostatic separator makes the sorting more accurate and more efficient, effectively control the non-ferrous metal loss
√ Dry separation by specific gravity separator



PCB Recycling Processing line Main Structures



YUXI – 300 waste circuit board recycling line consists of four parts which are crushing, grinding, sorting, and dust removal device to collect dust particles, no pollution during entire recycling.

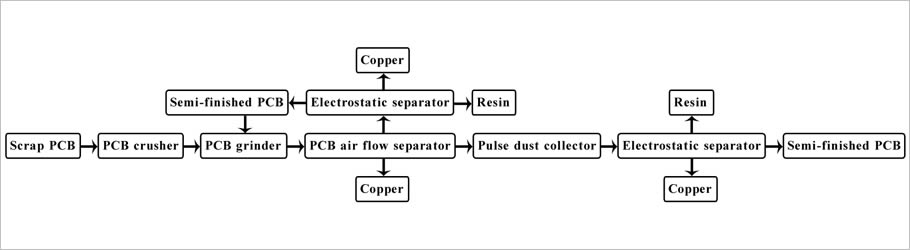

Process Flowchart of the PCB Recycling Machine YX-1000



PCB Recycling Production Line YX-1000 Flowchart



6 Steps of The PCB Recycling Process



Step 1: Waste PCB Crushing and Grinding Equipment
1) PCB crusher machine crush the scrap printed circuit board into 30-50 mesh particles
2) Circuit board Crusher Working principle:
High-speed rotation of the blades in the crushing chamber brings big impact and shear forces to make the materials crush into particle



Step 2. Airflow separation
Airflow sorting machine is use of air suspension principle, based on proportion and suspension velocity of different materials, separating the mixed powdery materials into light and heavy two-part sorting equipment.

thus, under the cross-cutting role of the airflow, mainly separated out the fiber powder from the step 1

The purpose of separating out fiber powder from step 1

Superiority of PCB powder airflow separation equipment
1. Sorting accuracy and fineness is high, sorting range can be adjusted within 15-200 mesh.
2. Using the airflow automatic cycle, set sorting and collecting into one, simple and compact structure.
3. Long service life, easy to install and maintain



Step 3. Pulse dust removal equipment
In the PCB crushing and grinding process, there will be produce fine dust, during separating, also have some powder dust suspended at the vents, pulse dust-collector device adopts new efficient long bag filter to eliminate dust, so, in order to prevent dust pollution, Pulse dust removal machinery is necessary



Step 4. Elevator
Conveying the powder into the pulse dust removal equipment, then transporting it to high voltage electrostatic separation bin



Step 5. Gravity separator
Specific gravity separator mainly sorted out the resin powder from the mixture of copper and resin powder



Step 6. Electrostatic separator.
Also called high-voltage electrostatic separation equipment, which based on the principle of high pressure magnetic field, makes the conductive material and non-conductive material easy to separate. Also makes the cooper metal and resin nonmetal in this steps of printed circuit board processing to split, so as to achieve the purpose of separating the copper particle and resin powder. ( electrostatic separator also is the key equipment of Aluminium Composite Panel Recycling Machine )

By the way, YUXI electrostatic separator can not only used for sorting a variety of plastic or other impurities, such as aluminum-plastic material, waste printed circuit board ,the scrap cable, ceramic impurities in the alloy powder, ore sorting etc., but also can be used in sorting kinds of plastic like PET, PVC, PP, PS, etc. Electrostatic separator is an indispensable machine of the circuit board recycling production line
