Circuit Board Recycling Equipment YX-800 Introduction
With 800 KG per hours production capacity. Circuit Board Recycling Equipment YX-800 was controlled by PCL, not only improved the purity of copper and resin recycling, but also avoided secondary pollution, waste circuit board was processed by separating & sorting equipment, the purity of recycled copper comes from PCB can up to 99%
Circuit Board Recycling Equipment Main Application
Also called PCB recycling machine is mainly used for processing circuit boards, CCL (copper clad laminate), waste circuit boards and other scrap motherboards, in order to separate and recycle copper metal and resin powder non-metallic material from waste pcb material.
Circuit Board Recycling Equipment YX-800 Features
● Compact structure, reasonable layout, stale performance, low noise
● PLC control system, evenly, feeding, coordinated operation.
● Three-stage crushing, processing capacity up to 1200 Kg per hour
● Crusher chamber adopts circulating water to control the temperature and reduce the noise.
● The whole PCB recycling machine uses negative pressure feeding, effectively reduce dust overflow.
● Material return system enables the crushing & grinding more efficient
● The sorting ratio of the Airflow sorting equipment can reach at least 97%.
● Pulse Dust-removal equipment can effectively prevent the dust leakage, the dust-cleaning rate can reach 99.9%, full compliance with state environment requirements “integrated air pollutant discharge standard” GB16297-1996, and no secondary pollution.
● High-voltage electrostatic separator makes sorting more sophisticated and more efficient, ensuring no non-ferrous metal loss
● Crusher equipped with hydraulic system, labor saving, easy to replace the wearing parts
● Whole PCB recycling equipment equipped with bridge and guardrail, facilitate the maintenance man at real-time monitoring and overhaul.

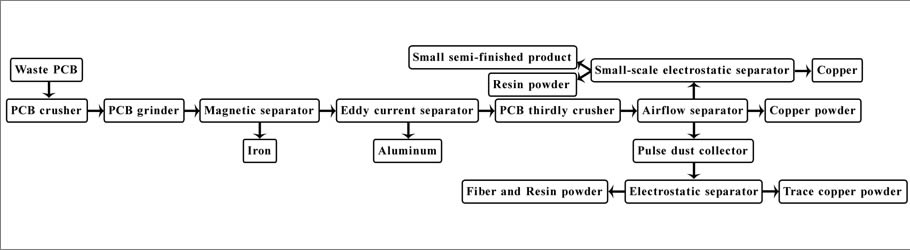

Process Flowchart of The PCB Recycling Machine 800
Process flowchart of the PCB recycling machine 800
The Processing Technology of The Circuit Board recycling production line
Firstly crushing, using roll crusher, secondary and thirdly crushing, all adoption of hammer crusher, waste PCB materials were crushed and ground into powder by two-stage crushing, then sorted by air flow sorting equipment and electrostatic separation equipment. YX-800 Circuit Board recycling production line with novelty and unique structure, big production capacity, low power consumption. One-time feeding, completed by multi-machine cooperation
In order to prevent dust pollution during the whole Circuit Board recycling processing, added & install a dust collect, followed airflow separation device, which effectively solve the problem of dust pollution. If you have any question about PCB recycling machine, please for free contact YUXI PCB recycling machine suppliers
